DSX Series
The DSX models are designed for industrial use and have a large output capacity with e.g. increased cutting depth, pneumatic plunging and a motor rating upto 5,5kW. A wide variety of accessories is available, such as many automatic functionalities and programming of cutting patterns.
Download brochure
Characteristics
Clip board for job cards
Handy holder of operator information or documents at the side of the control box.
Easy to use control panel
Depending on the different options ordered the control panel will be delivered only with the relevant buttons.
Entry and exit rollers for panel handling
Left- and right-side entry and exit rollers for easy panel handling.
Failure diagnosis
Location of possible failures by easy accesible LED display
Heavy, self-rigid carrying guidance modules
Completely self-rigid and free standing construction of basic framework. Tension-free hardened steel bar guidance module for horizontal travel.
Pneumatic locking of saw-unit at working height, with fine adjustment
Setting of the measures for horizontal cutting, independent of the height of the position, always at eye level, with micrometric adjustment for fine tuning.
Pneumatic plunging of saw-unit
Easy movement of the saw-unit in and out of the panel, also when sawing in higher cutting positions
Programming rail for repetitive dimensions
Manual programming rail, for setting 5 different horizontal fixed measures.
Repeat-stop for strip cutting
Repeat stop facility with track-bearing, running on the top cut section of the panel, allowing repetitive horizontal strip cutting, adjustable from 0-500mm.
Robust, fine-adjustable measuring stop
Heavy cast iron flip-stop with micro metric adjustment for vertical cuts, on 30 mm steel bar guidance.

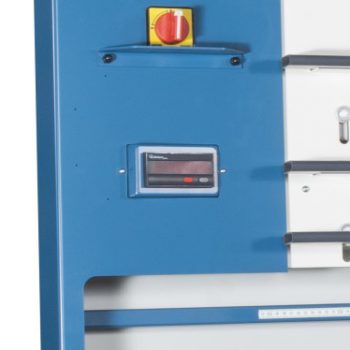

Digital read out for vertical cutting (optional)
Digital read out for vertical cutting on the frame. The one for horizontal cutting is placed on the operator panel.
Gallery
Specifications
Product versions and dimensions
| 155 | 185 | 215 | ||
|---|---|---|---|---|
| A | 945 mm | 945 mm | 945 mm | |
| B | 1450 mm | 1450 mm | 1450 mm | |
| C | 4510 mm | 4510 mm | 5510 mm | |
| D | 1980 mm | 2280 mm | 2580 mm | |
| E | 2265 mm | 2565 mm | 2865 mm |
| 155 | 185 | 215 | ||
|---|---|---|---|---|
| Weight in KG | 785 KG | 830 KG | 905 KG | |
| Maximum cutting length | 3300 mm | 3300 mm | 4300 mm | |
| Maximum cutting height |
1550 mm hor.
mm vert.
|
1850 mm hor.
mm vert.
|
2110 mm hor.
2150 mm vert.
|
|
| Maximum cutting depth | 80 mm | 80 mm | 80 mm | |
| Motor | 4 kW | 4 kW | 4 kW | |
| Saw speed | 4200 rpm | 4200 rpm | 4200 rpm | |
| Diameter saw blade | 300 mm | 300 mm | 300 mm | |
| Electrics | 400V/3ph/50Hz | 400V/3ph/50Hz | 400V/3ph/50Hz | |
| Dust collector requirements | 20m/sec | 20m/sec | 20m/sec |
